Floraflex Matrix Circulator

Information

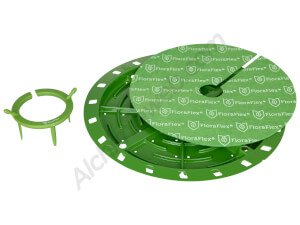

Floraflex Matrix Circulator is part of the Matrix professional irrigation system. Its function is to transport and distribute the irrigation water from the nutrient tank to the Matrix irrigation system.

This ring-shaped piece has two barbed nozzles at the top to attach the Floraflex irrigation tubes. The water entering the nozzles is pushed outward into the 8 maze sections of the Round Matrix with individual holes dripping the water onto the Matrix round Pad, and subsequently being distributed uniformly to the substrate. The Matrix Circulator lower part has three points where to join the three-piece system.

Installing the Matrix Circulator

Place the Matrix Pad on the substrate surface, then insert the Round Matrix on top of it and fit the Matrix Circulator with the 3 cleats. Now connect the two irrigation tubes to the upper barbed nozzles and the system will be ready to use.

There are two Matrix Circulator sizes according to the Round Matrix size:

• Matrix Circulator 3'' for Round Matrix 10.5'', 12.5'' and 15.5''.
• Matrix Circulator 2 ¼'' for Round Matrix 7.5'' and 9''.

Floraflex Matrix Circulator info:

• Product: Matrix Circulator
• Part of the Matrix professional irrigation system
• Diameters: 2 ¼'' (5.5cm) and 3'' (7.5cm)
