Lumatek Tekken KIT is the new LEC CMH CMD lighting system from Lumatek, a company well-known for producing quality electronic ballasts with adjustable power.

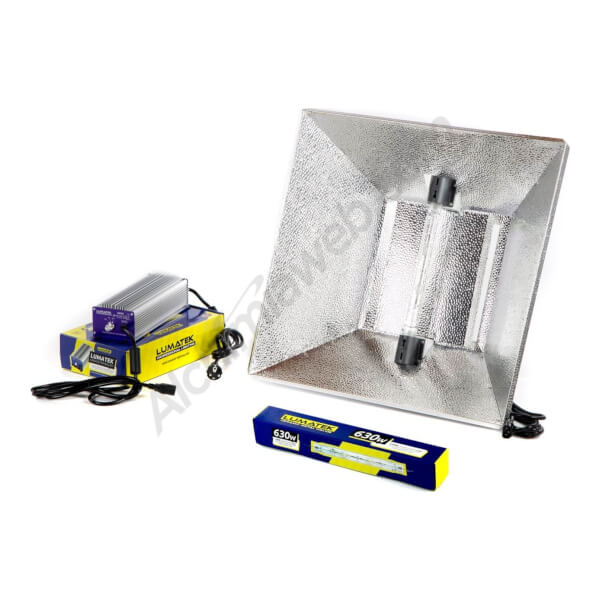

Lumatek introduces the Tekken Kit, a 630w CMH ceramic discharge metal-halide kit. A quality lighting system with an adjustable potentiometer. This kit incorporates a premium lamp hood with a choice of high quality reflective surfaces, the ballast and a 3100K lamp.
Full control with the Lumatek digital control panel
The Tekken Kit has an option to be remotely controlled using the Lumatek digital control panel. This panel can simultaneously control different horticultural equipment and also has the option to simulate sunrise and sunset with a timed fade to full brightness, slowly increasing power when lights turn on, and reducing power when lights turn off. The digital control panel is sold separately.
For safety the CMH LEC CMD ballast uses full circuit protection including open/short circuit, over temperature, over/low voltage, end of lamp life/rectification and EMI suppression (Electromagnetic interferences).
Double-ended bulb technology for optimal lighting
Includes a quality double ended bulb engineered for use with the 630w CMH LEC Lumatek ballasts. This bulb creates an optimal spectral output, offering a wide colour range from blue for healthy plant growth to red and far red ideal for plant flowering.
Ussing the Lumatek 630w CMH/LEC CMD Tekken Kit it's possible to harvest almost same yield of flowers as when using a 1200w HPS (two 600w sodium lamps) but reducing the consumption of electricity by half. Less power, more efficiency and a superior light spectrum.
Professional hood with either a Hammertone or MIRO® reflector
The premium professional grade Tekken lamp hood is manufacture with high quality materials, specifically designed for use in grow rooms and grow tents and has a 1.20 m2 footprint. Ideal both for grow tents and open indoor areas. The heat emission to the plants is minimal thanks to the reflector's vented design allowing heat dissipation, making climate control much easier to manage.
The hood design, in combination with high-quality reflective surfaces, offers a uniform spread of light without any hots spots, as well as great light penetration and maximum light intensity leading to increased efficiency.
This kit is available with two different options to choose from: Hammertone aluminium reflective surface, offering 92% reflectivity, or alternatively, the MIRO reflector which is produced using MIRO® reflective surface material which is made from purest 99.99% and super reflective oxide layer system offering 95% reflectivity which makes this one of the most reflective materials currently available.
630w Lumatek Tekken info:
- 630W CMH adjustable power and controllable ballast
- Voltage: 240V 50 / 60Hz
- Maximum input power (A): 3.2A
- Input power: 668W
- Output power: 630W
- Power factor:> 0.97
- Efficiency: 95%
- Voltage range: 185 to 275V
- THD: <10%
- Adjustable power: 80% - 90% - 100% CF: <1.7
- Operating frequency: high frequency
- No audible noise
- Ballast IP Rated: IP20
- Humidity: 90%
- Full circuit protection; open/short circuit, over temperature, over/low voltage, end of lamp life/rectification
- Dimensions: 320 x 114 x 81mm
- Weight: 3.8 Kg
630w CMH (3100/4200K) bulb info:
- 630W Lumatek CMH bulb
- Power Voltage: 240V 50Hz
- Lamp Power (W): 630
- Lamp Current (A): 3.2
- Rated Life (H): 12000
- CCT (K): 3100/4200K
- Initial Lumens (lm): 70.000/72.000
- Luminous Efficiency (lm/W): 111/114
- PAR (micromols / sec): 1250/1200
- Bulb: Double Ended
