Lumatek Aurora 315w CMH LEC 3100 K

Information

The Aurora is the new LEC CMH lighting system from Lumatek, a company well-known for producing high quality HPS electronic ballasts with adjustable power.

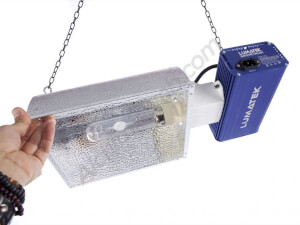

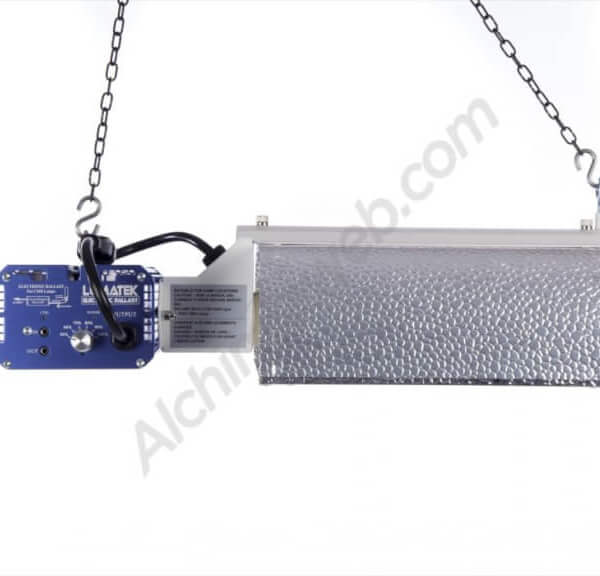

Lumatek presents Lumatek Aurora, a 315w ceramic discharge metal-halide kit. A quality lighting system with an adjustable potentiometer. An integrated all-in-one fixture combining the reflector, the ballast and a 3100 K lamp.

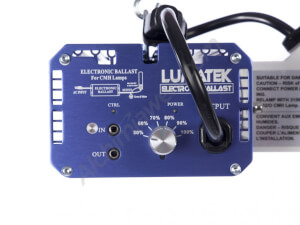

Lumatek Aurora can be remotely controlled using the Lumatek digital control panel. This panel can simultaneously control different extensive horticultural cultivation equipment and also, has the option to simulate sunrise and sunset with a timed fade to full brightness, slowly increasing power when lights turn on, and reducing power when lights turn off. The digital control panel is sold separately.

For safety the CMH/LEC CMD ballast uses full circuit protection including open/short circuit, over/low voltage, end of lamp life/rectification and EMI suppression (Electromagnetic interferences).

The bulb is of high quality, engineered for use with CMH LEC Lumatek ballasts. This bulb is the 3100 Kelvins, but really offers a produces a wide colour spectrum, from blue for healthy plant growth to red and far-red ideal for plant flowering.

By using the Lumatek CMH/LEC CMD Aurora Kit it is possible to harvest almost same yield of flowers as when using a 600w HPS sodium lamp but cutting the consumption of electricity by half. Less power, more efficiency.

315w LEC Lumatek Aurora info:

• Voltage: 240V 50/60Hz
• Input Current Max (A): 1.60A
• Input power: 334w
• Output power: 315w
• Power factor: > 0.97
• Efficiency: 92%
• Voltage range: 185 to 275V
• THD: <10%
• CF: <1.6
• Operating frequency: Low frequency square waves
• No audible noises
• Ballast IP rated: IP20
• Humidity: 90%
• Full circuit protection: open/short circuit, over temperature, over/ low voltage, end of lamp life/rectification
• EMI suppression certified

CMH LEC lamp info:

• Power Voltage: 240V 50H
• Lamp power (W): 315
• CCT (K): 3100K (Agro)
• Lamp Current (A): 3.15
• Rated life (H): 12000
• Initial lumens (lm): 32500 (3100K)
• Luminous efficiency (lm/W): 104 (3100K)
• PAR (micromols/sec): 575 (3100K)
• Type of bulb: T38
• Cap: PGZX18
