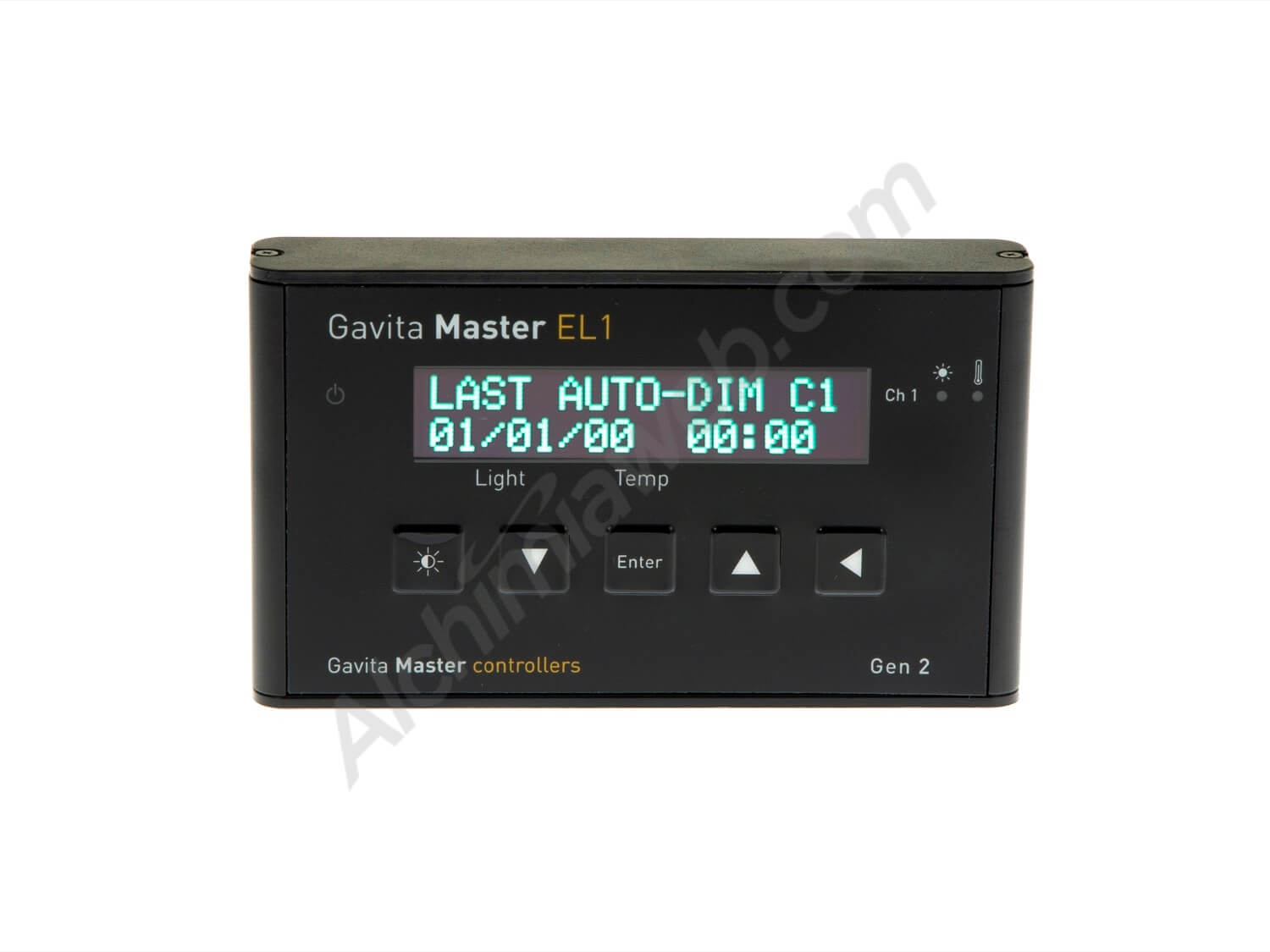

Alchimia Grow Shop presents Gavita Master Controller, a Gavita 6/750E DE FLEX lighting kit complement.

This controller has been designed to maximise Gavita lighting system power, since it allows to control at the same time all the lamps in a simple and convenient way.

Gavita Master Controller, Gavita lighting system controller

The lamps power (between 50% and 115% of the power) and the photoperiod (on and off time) can be graduated without the need to reach each ballast.

A progressive on and off can be programmed to emulate sunrise and sunset, thus reducing light stress on the plants in our indoor grow tent or cultivation room, stimulating their optimal development.

It is characterised by a powerful safety system, which adjusts the lamp power in relation to the ambient temperature in the cultivation area.

Gavita Master Controller, to program and control easily many lamps

With high temperatures caused by the lamps, their intensity is reduced to lower the temperature by a few degrees. If necessary, the lamps are switched off to balance the ambient temperature and protect the plants. Undoubtedly an optimal control to obtain the maximum of our indoor marijuana cultivation.

The internal memory allows to store the programming set, so it is not deleted by power cuts or when it is turned off. It records all event logs, such as power on/off, emergency shutdowns, power changes, etc.

There are two models, EL1 with one channel and EL2 with two independent channels which allows to set two lamp lines separately connected via a RJ14 cable.

Gavita Master Controller reduces the lamps power in the event of temperature excess

Both models have a high quality and contrast OLED display. They are easy to configure with 5 buttons to navigate through the different options and read the recorded data.

It is equipped with a short-circuit protection system, sending the information safely to the ballasts using low voltage signals.

The EL 2 model is equipped with two alarm connectors (NO and NC) that integrate the lighting control system to the monitoring and general security system. In case of an electrical problem or a sensor failure, an alert is activated so that it can be solved promptly.

Gavita Master Controller info:

  • Gavita lighting kit controller
  • Available in two versions, EL1 - one output, and EL2 - two independent outputs
  • EL1 - up to 40 lamps connected at the same time, and EL2 – up to 80 (40 per port).
  • Dimensions: 110x21x65mm
  • Weight: 115g
  • Power supply: 100-240V AC 50-60hz 15V DC (1000mA)
  • Maximum wire length per connection: 100m
  • OLED display - 5 control buttons
  • Easy to use and configure
  • Photoperiod can be set, with independent on and off
  • Power regulation between 50% and 115%
  • Thermal protection system - lowers the power or turns off the lamps if the temperature rises
  • Short-circuit protection
  • Logs recorded - all events can be consulted in the controller
  • EL2 has NO and NC ports to be connected, if any, to a general installation alarm system
  • Save from moisture, condensation and dust

Gavita Master Controller EL1 kit content:

  • 1x Controller
  • 1x Installation plate
  • 2x Countersunk screws
  • 2x Tacos
  • 1x Power adapter
  • 1x Connection cable 5m with RJ 6P4C terminal - for the ballast, and a cable with RJ 4C4P terminal - for the controller
  • 1x Temperature probe - 5m
  • 1x Cover for the sensor, which prevents light from affecting it providing a misleading temperature reading

Gavita Master Controller EL2 kit content:

  • 1x Controller
  • 1x Installation plate
  • 2x Countersunk screws
  • 2x Tacos
  • 1x Power adapter
  • 2x Connection cable 5m with RJ 6P4C terminal - for the ballast, and a cable with RJ 4C4P terminal - for the controller
  • 2x Temperature probe - 5m
  • 2x Cover for the sensor, which prevents light from affecting it providing a misleading temperature reading
