Mr. Hide Extracts Pro Vacuum Pumps are an excellent choice when it comes to purging extracts with either a vacuum hood or desiccator or a vacuum oven. Power and durability combined in a single device, now available at Alchimiaweb.
Pro vacuum pump, extractions without a trace of solvents
Thanks to the powerful 1,100W motors that these pumps incorporate, a vacuum reduction to 0.3 microns is achieved in a matter of minutes, and it can be connected for hours without any problem. In addition, and thanks to an oil filter that it incorporates, the noise produced when it is in operation is significantly reduced.
Of course, all the accessories and filters needed for immediate use are included, as well as a convenient adjustable gas ballast system that allows dry air to enter directly into the pump and solvents, contaminants and moisture to be drawn out through the exhaust and do not remain in the pump.
The Mr. Hide Extracts Pro Vacuum Pump can be found in two different models, the 11 CFM and the 21 CFM .
It is recommended to use this type of device with all precautions and in a properly ventilated area.

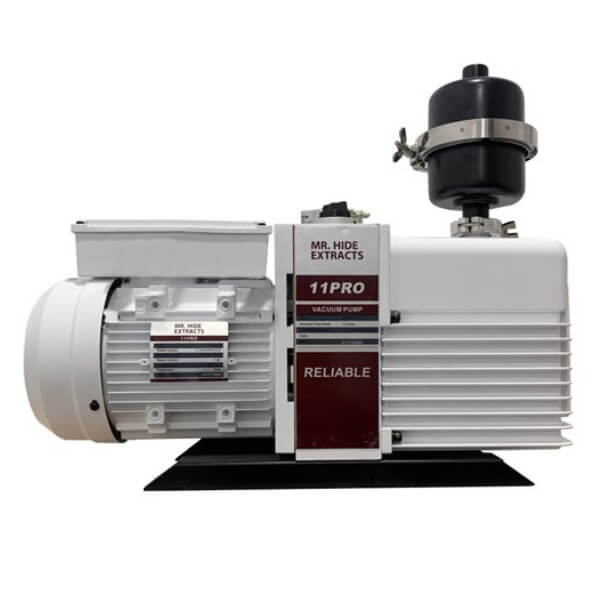

Mr. Hide Extracts Pro 11 CFM Vacuum Pump Features
- Electrical Requirements: 115V 60Hz or 230V 50/60Hz, single phase, 1,100 watts
- Pumping rate: 11.3cfm (115V 60Hz), 9.3cfm (230V 50/60Hz)
- Maximum vacuum without gas ballast: 0. 3 microns/millitorr
- Definitive vacuum with gas ballast: 6 microns/millitorr
- Input / output connection: Flange KF25 / NW25
- Oil volume: 1.5 liters / 1.59 quarts
- Motor rate: 1715 rpm (at 60 Hz) or 1440 rpm (at 50 Hz)
- Work temperature: 5 - 40°C
- Unit / Shipping Dimensions (LxWxH) 21 x 7.5 x 12" / 36 x 10 x 17"
- Unit / Shipping Weight: 33kg / 37kg
- Noise level: <58dB
- Warranty: 2 years
Mr. Hide Extracts Pro 21 CFM Vacuum Pump Features
- Electrical Requirements: 115V 60Hz or 230V 50/60Hz, single phase, 1,100 watts
- Pumping rate: 21 cfm
- Maximum vacuum without gas ballast: 0. 3 microns / millitorr
- Definitive vacuum with gas ballast: 6 microns / millitorr
- Inlet / outlet connection: Flange KF25 / NW25
- Oil volume: 2 liters / 2.1 quarts
- Motor rate: 1715 rpm (at 60 Hz)
- Working temperature: 5 - 40°C
- Unit / Shipping Dimensions (LxWxH) 21 x 7.5 x 12" / 37 x 10 x 17"
- Unit / Shipping Weight: 37kg / 45kg
- Noise level: <58dB
- Warranty: 2 years
