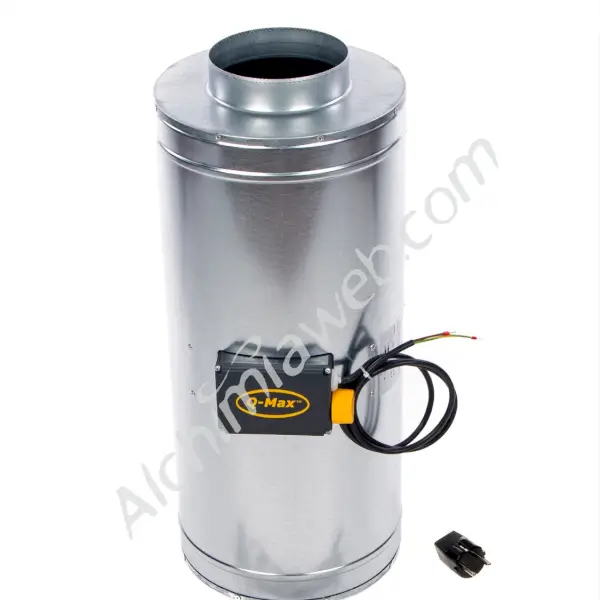

Q-max AC extractor fan

Information

Alchimia presents the Can Fan Q-Max AC extractors, an evolution of the well-known range of Iso-Max extractors. These extractors are characterised by integrating the motor inside a silencer, offering a compact and high performance solution for climate control in indoor crops.

Quiet and efficient with Max-Fan Pro technology

The Q-Max AC range incorporates Ruck's German-made Max-Fan Pro Series motors, featuring excellent aerodynamic efficiency and extremely quiet operation. Their galvanised metal housing with acoustic insulation helps to drastically reduce noise, further improving performance over previous models.

Thanks to their 3D rotor, these extractors generate an optimised mixed airflow to avoid turbulence, vibration and unwanted noise. This makes it possible to move larger volumes of air than previous models, while maintaining a very low noise level.

Full control with 3-speed selector

The Q-Max AC has a three-speed potentiometer, which allows you to easily adjust the power according to the specific needs of the crop. In this way, they combine extractor, silencer and power controller in one device, offering an integrated, high quality solution.

When combined with an activated carbon filter, these extractors guarantee efficient and practically imperceptible air extraction, effectively eliminating the odours generated by marijuana cultivation.

Professional solution for demanding spaces

Q-Max AC extractors are designed to offer professional performance in demanding indoor growing spaces. Their high static pressure, high airflow and compact design make them ideal for use with carbon filters, long ducting and installations that require maximum efficiency and discretion.

Available models

• Q-Max AC 150/555 - Diameter: 150 mm | Flow rate: 555 m³/h | Power consumption: 52W | Noise: 29 dB
• Q-Max AC 200/1120 - Diameter: 200 mm | Flow rate: 1120 m³/h | Power consumption: 129W | Noise: 34 dB
• Q-Max AC 250/1590 - Diameter: 250 mm | Flow rate: 1590 m³/h | Power consumption: 177W | Noise: 36 dB

Each model includes an integrated speed controller and can be installed either horizontally or vertically.

Advantages of the Can Fan Q-Max AC extractor fan

• Max-Fan Pro Series motor with 3D turbine
• Sound absorbing foam casing
• Quick access for cleaning and maintenance
• Robust and quiet design
• Ideal for working with carbon filters

With the Can Fan Q-Max AC extractor, you will improve air renewal and reduce noise, maintaining a healthy and discreet environment for your plants.

Documents download

• canfan-q-max-uk-150-555-min.pdf
• canfan-q-max-uk-200-1120-min.pdf
• canfan-q-max-uk-250-1590-min.pdf
