AC Infinity Fan and Filter Extraction Kit - WiFi-Controlled

Information on AC Infinity Fan and Filter Extraction Kit - WiFi-Controlled

AC Infinity PRO extractor kit with carbon filter and WiFi app for indoor growing. Renew the air in your grow room and neutralise odours with silent and powerful technology. Control temperature and humidity from your mobile with total precision. Ideal for spaces of 80 x 80 cm and larger.

Intelligent ventilation for your crop: maximum efficiency and control from your mobile phone

The AC Infinity WiFi controlled filter and extractor kit combines technology, efficiency and comfort in a single ventilation system for indoor growing. It includes a CLOUDLINE PRO extractor with an ultra-quiet EC motor, a high absorption Australian carbon filter and a smart WiFi controller to manage the climate from the AC Infinity app.

Available in two versions depending on the duct diameter:

• 100 mm: airflow 348 m³/h (according to manufacturer's specifications on A4 model)

• 150 mm: airflow 402 m³/h (according to manufacturer's specifications on A6 model)

Ideal for 80 x 80 cm cabinets, this kit offers a complete plug & play solution to keep the air fresh and odour-free, adapting to each stage of cultivation.

What is included in this AC Infinity ventilation kit?

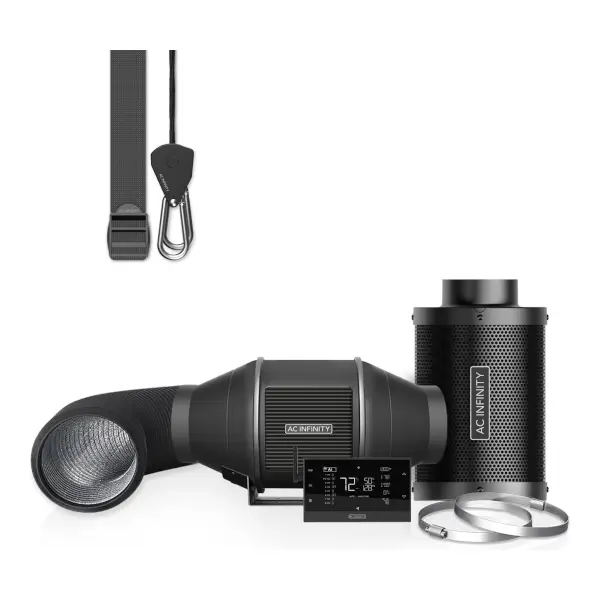

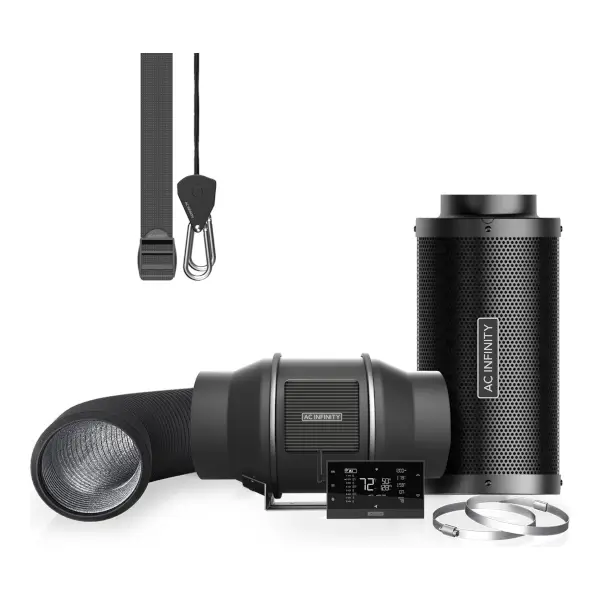

• CLOUDLINE PRO 100 mm or 150 mm extractor fan with PWM-controlled EC motor
• Activated carbon filter with cast iron housing
• 69 PRO WiFi controller for full programming
• 7,62 m hose with 4 layers of insulation
• Clamps, straps, hooks and textile pre-filters
• Complete installation manual and accessories

Why is this kit ideal for your indoor cannabis growing?

• Total climate control: Adjust temperature, humidity and fan speed from the panel or mobile app.
• Quiet and powerful: Only 28 dBA (or 32 dBA on the 150mm) of noise thanks to the high efficiency EC motor.
• Full automation: Schedule on/off, cycles and alerts from anywhere.
• Effectively neutralises odours: Australian activated carbon with IAV 1200+ and 38 mm layer for maximum absorption.
• High durability: Up to 67,000 hours lifespan, ideal for intensive and continuous growing.

Intelligent control of indoor cannabis growing

Installation is simple, in plug & play format, without special tools. The system is set up in minutes and controlled from the Controller 69 PRO or via WiFi with the AC Infinity app.

the AC Infinity Smart Controller 69 Pro is an advanced tool for managing an indoor cannabis growing environment. It allows you to control up to four devices (such as fans, LED lights, humidifiers, etc.) independently, automating them according to parameters such as temperature, humidity and VPD (Vapor Pressure Deficit).

• Intelligent: Automatically adjusts fan speed and light intensity according to temperature, humidity and VPD, ensuring optimal conditions for plant growth.
• Custom programming: Offers programming options such as growth cycles, schedules, timers, minimum levels and custom transitions, adapting to different phases
• Accurate monitoring: Includes a 3.6m probe with a thermal alloy head that accurately measures temperature, humidity and VPD, providing detailed data to optimise the growing environment.
• Remote connectivity: Connects to the AC Infinity app via Bluetooth or WiFi, allowing you to access advanced programs, set alarms, receive notifications and view climate data from anywhere

It also allows you to save historical data, export data and receive real-time notifications.

Who is this kit for?

Perfect for growers looking to automate and optimise the climate in their grow room.

Thanks to its airflow and carbon filter capacity, this kit is ideal for standard grow tents that require a complete air renewal every 3 minutes. It is perfect for cabinets with volumes up to 1 m³, such as the models 60 x 60 x 60 x 140 cm, 60 x 60 x 160 cm, 80 x 80 x 160 cm or even larger. These dimensions ensure a healthy environment for plants, even in advanced stages of cultivation where odour and climate control are critical.

Technical data sheet

Intelligent extractor fan CLOUDLINE PRO 100 mm

• Air flow rate: 348 m³/h
• Noise level: 28 dBA
• Duct diameter: 100 mm
• Dimensions: 175 x 300 x 185 mm
• Service life: up to 67,000 h
• Bearings: double ball bearings
• Connection: WiFi + AC Infinity App
• UIS™ platform compatible (up to 4 devices)
• 69 PRO controller included

CLOUDLINE PRO 150 mm smart exhaust fan

• Airflow: 402 m³/h
• Noise level: 32 dBA
• Duct diameter: 150 mm
• Dimensions: 213 x 241 mm
• Service life: up to 67,000 h
• Bearings: double ball bearings
• Connection: WiFi + AC Infinity App
• UIS™ platform compatible (up to 4 devices)
• 69 PRO controller included

Activated carbon filter

• Material: cast iron with Australian charcoal
• Carbon layer thickness: 38 mm
• Connector: 100 mm
• Maximum airflow : 357 m³/h
• IAV: 1200+
• Optimum efficiency up to 55% Relative Humidity

Included accessories

• Air tube: 7,62 m (4 layers)
• Pre-filter fabric x2
• Rope hooks x2
• Hanging straps x2
• Fixing clamps x2
• Installation manual
