Extractor with Built-in Filter

Information on Extractor with Built-in Filter

Available at Alchimia, the Cyclone extractor with integrated filter, the perfect combo for odor control and air renewal in your grow.

The EC Extractor with integrated carbon filter (2-in-1 system) renews the air in your grow and eliminates odors, while also helping to control temperature and humidity in your cultivation.

It operates quietly (<32 dB) and is compatible with different duct sizes, offering optimal performance in grow tents, indoor rooms, or greenhouses. Ideal for growers seeking silent ventilation and professional odor filtration with minimal power consumption (24w).

Extractor and filter (two in one)

The Cyclone EC Extractor with integrated carbon filter is a complete solution for air renewal in indoor cultivation and efficiently eliminating odors. This 2-in-1 system integrates an air extractor and activated carbon filter in a single device, simplifying installation and saving space in grow tents, rooms, or small greenhouses.

Thanks to its high-efficiency EC motor, it delivers powerful airflow with very low power consumption and extremely quiet operation. It's an ideal option that also helps control temperature and humidity, as well as odors from indoor cultivation in a simple way.

In indoor grows, it's essential to renew the air to prevent the buildup of heat, humidity, and odors. The Cyclone EC Extractor with integrated filter extracts stale air from the grow while the activated carbon filter neutralizes odors, ensuring a cleaner and more discreet environment.

By integrating the filter directly into the extractor, this system reduces the number of components in the ventilation system, simplifying assembly and improving overall efficiency.

This extractor is compatible with ventilation ducts of 100 mm, 125 mm, and 150 mm, allowing easy adaptation to different tent sizes or installations.

Efficient and quiet motor

The Cyclone extractor uses EC (Electronically Commutated) technology, a type of brushless motor that offers greater energy efficiency, less heat generation, and longer durability compared to traditional motors.

Thanks to this system, the extractor achieves a maximum airflow of 550 m³/h, (suitable for tents up to 150 x 150 and 120 x 240 and larger, more than sufficient to maintain proper air renewal in most indoor grows.

Additionally, its optimized design and ultra-lightweight ABS blades maintain a noise level below 32 dB, making it an excellent option for growers who need discretion in their extraction system.

Compatible with climate controller

The Cyclone EC Extractor can be connected to speed controllers or climate controllers, allowing you to automate grow ventilation.

This way, the extractor can increase or decrease its power according to environmental conditions, always maintaining the ideal climate for plant development and optimizing energy consumption.

Easy carbon filter maintenance

The system features a modular design that facilitates access to the activated carbon cartridge, allowing for quick and simple maintenance.

To maintain optimal filtration, it's recommended to replace the carbon filter every 3 months, or every 2 months (like any filter) in environments with greater presence of odors or contaminants.

As additional maintenance, the cartridge can be exposed to sunlight for about 10 hours every three months, which helps extend its effectiveness.

The Cyclone EC Extractor with integrated filter is an ideal solution for growers seeking an efficient, quiet, and easy-to-install extraction system, capable of keeping the grow climate under control and effectively eliminating odors from indoor cultivation.

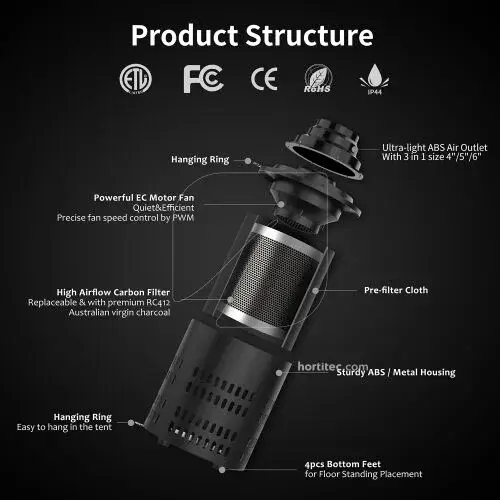

Cyclone EC Extractor Features:

• Air extractor with integrated activated carbon filter
• Dimensions: 234 x 234 x 271 mm
• Port diameters: 100 mm / 125 mm / 150 mm
• Power consumption: 24 W
• Maximum airflow: 550 m³/h (395 CFM)
• Speed: 3300 RPM
• Voltage: 100–240 V AC, 50/60 Hz
• High energy efficiency EC motor
• Quiet operation (<32 dB)
• Lightweight ABS blades for optimized airflow
• Simple installation and compact system
• Replaceable carbon filter
