Trafika Extractor Kit

Information

Alchimia presents Trafika Extractor Kit, a set that contains all the necessary elements to install an air renewal system in the cultivation, ensuring unwanted odours are filtrated.

There are available 4 different kits intended for various growing installations:

• Trafika Extractor Kit 100/250m3 per h – 120cm x 120cm grow tents
• Trafika Extractor Kit 125/250m3 per h – 150cm x 150cm grow tents
• Trafika Extractor Kit 125/460m3 per h – 120cm x 240cm grow tent
• Trafika kit for family cultivations - 150/690m3 per h – 240cm x 240cm grow tent

Trafika Extractor Kit is very easy to install in a cannabis grow tent. It guarantees air renewal on the grow space and filtering odours.

Trafika Extractor Kit is fully compatible with Trafica 400w and 600w Lighting Kits.

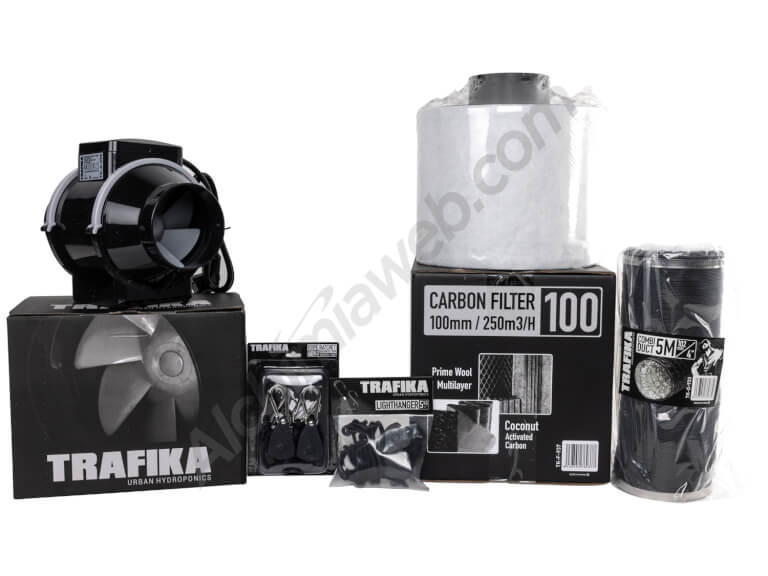

Trafika Extractor Kits info:

• TT extractor with 100% copper motor and two speeds
• High density coconut carbon filter (730g per m2)
• Combiduct air ducts of 5m, opaque and with clamps
• Light hangers type pulleys, support up to 5kg each to hang the filter
• Galvanized steel carabiner pulleys that support up to 68kg each, to secure the extractor in the grow tent

Trafika Kits elements and info:

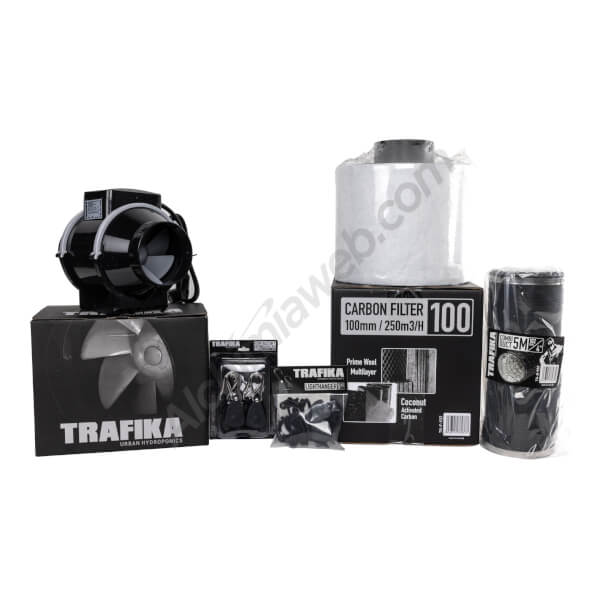

Trafika Extractor Kit 100mm/250m3 per h:

• Two-speed extractor: 220m3 per h and 280m3 per h
• Extractor power: 21w and 33w
• Extractor speed: 1950 rpm and 2455 rpm
• Carbon filter: 100mm and up to 250m3 per h
• Combiduct air tubes of 5m and 102mm diameter
• 2 Light-hanger pulleys
• 2 carabiner type pulleys
• * Given the capacity of the filter, we recommend using the extractor at 220m3 per h to avoid collapsing the motor (low speed).

Trafika Extractor Kit 125mm/250m3 per h:

• Two-speed extractor: 220m3 per h and 280 m3 per h
• Extractor power: 21w and 33w
• Extractor speed: 1950 rpm and 2455 rpm
• Carbon filter 125mm and up to 250m3 per h
• 5m 127mm diameter Combiduct air tubing
• 2 Light-hanger pulleys
• 2 carabiner type pulleys
• * Given the capacity of the filter, we recommend using the extractor at 220m3 per h to avoid collapsing the motor (low speed).

Trafika Extractor kit 125mm/460m3 per h:

• Two-speed extractor: 220m3 per h and 280m3 per h
• Extractor power: 23w and 37w
• Extractor speed: 1950 rpm and 2455 rpm
• Carbon filter 125mm and up to 460m3 per h
• 5m 127mm diameter Combiduct air tubing
• 2 Light-hanger pulleys
• 2 carabiner type pulleys

Trafika Extractor kit 150mm/690m3 per h:

• Two-speed extractor: 405m3 per h and 520m3 per h
• Extractor power: 30w and 60w
• Extractor speed: 1680 rpm and 2460 rpm
• Carbon filter 150mm and up to 690m3 per h
• 5m 152mm diameter Combiduct air tubing
• 2 Light-hanger pulleys
• 2 carabiner type pulleys
