IsoBox Foam Airfans is an extractor fan with an insulating box. It is an evolution of the classic metal or wooden extractor boxes. Its thermoplastic casing reduces noise, vibrations and weight, while increasing its resistance (to water, fire and chemicals).
IsoBox Foam Airfan, noise, vibration and weight reduction
IsoBox Foam Airfan has an innovative design. It is the evolution of the Isobox soundproofed extractor boxes. Its plastic cover reduces noise, is water and heat resistant, as well as shock resistant, making it an alternative to metal or wooden covered boxes.
Is made of moulded thermoplastic panels, a very light and robust material with noise and vibration reduction properties. The lightweight material makes it very easy to install.
IsoBox Foam Airfan, resistant to water, fire and chemicals
IsoBox Foam Airfan models have different sizes depending, consequently, on their extraction capacity. They range from units capable of evacuating up to 250m3 per hour, to units that can remove up to 7000m3 of air per hour. As well as the difference in size between each IsoBox in the range, the diameters of the air inlet and outlet openings are also different. These specificities can be consulted in the characteristics section for each model below.
IsoBox Foam Airfan is an extractor box with very advantageous features compared to those made of wood. It is resistant to fire, chemicals and splash water. In addition, it operates more quietly and its centrifugal fan ensures a long service life.
Its ‘memory effect’ system prevents possible breakage or deformation due to shocks and it can work at temperatures of up to 110°C and down to -40°C. The material of manufacture, synthetic, prevents the proliferation of fungus and allows easy cleaning and disinfection.
Features of the IsoBox Foam Airfan 250 m3/h:
- Dimensions: 35x35x35 cm
- Weight: 8.6Kg
- Maximum flow rate: 250 m3/h
- Inlet: 125 mm
- Outlet: 125 mm
- Maximum intensity: 0.4 A
- Maximum noise: 30.2 dB
Features of the IsoBox Foam Airfan 550 m3/h:
- Dimensions: 35x35x35 cm
- Weight: 8.8 Kg
- Maximum flow rate: 550 m3/h
- Inlet: 160 mm
- Outlet: 160 mm
- Maximum intensity: 0.7A
- Maximum noise: 22.6 dB
Features of the IsoBox Foam Airfan 750 m3/h:
- Dimensions: 35x35x35 cm
- Weight: 7.9 Kg
- Maximum flow rate: 750 m3/h
- Inlet: 200 mm
- Outlet: 200 mm
- Maximum intensity: 1.2A
- Maximum noise: 23.9 dB
Features of the IsoBox Foam Airfan 1200 m3/h:
- Dimensions: 45x45x45 cm
- Weight: 17.8 Kg
- Maximum flow rate: 1200 m3/h
- Inlet: 250 mm
- Outlet: 250 mm
- Maximum intensity: 1.1A
- Maximum noise: 26.4 dB
Features of the IsoBox Foam Airfan 1500 m3/h:
- Dimensions: 45x45x45 cm
- Weight: 18 Kg
- Maximum flow rate: 1500 m3/h
- Inlet: 250 mm
- Outlet: 250 mm
- Maximum intensity: 1.4A
- Maximum noise: 36.7 dB
Features of the IsoBox Foam Airfan 2000 m3/h:
- Dimensions: 55x55x55 cm
- Weight: 27 Kg
- Maximum flow rate: 2000 m3/h
- Inlet: 250 mm
- Outlet: 250 mm
- Maximum intensity: 1.9A
- Maximum noise: 30.1 dB
Features of the IsoBox Foam Airfan 2500 m3/h:
- Dimensions: 55x55x55 cm
- Weight: 27.6 Kg
- Maximum flow rate: 2500 m3/h
- Inlet: 250 mm
- Outlet: 250 mm
- Maximum intensity: 2.6A
- Maximum noise: 30.9 dB

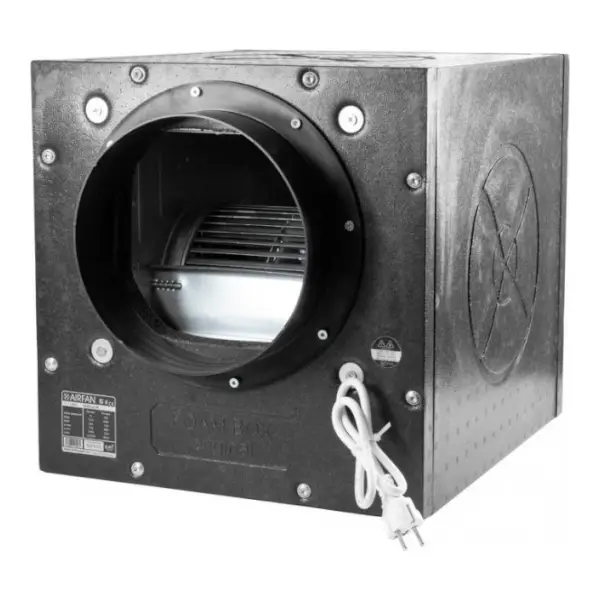

Features of the IsoBox Foam Airfan 3250 m3/h:
- Dimensions: 55x55x55 cm
- Weight: 27.6 Kg
- Maximum flow rate: 3250 m3/h
- Inlet: 2 x 250 mm
- Outlet: 315 mm
- Maximum current: 5.4A
- Maximum noise: 34.4 dB
