Mini Controller

Information

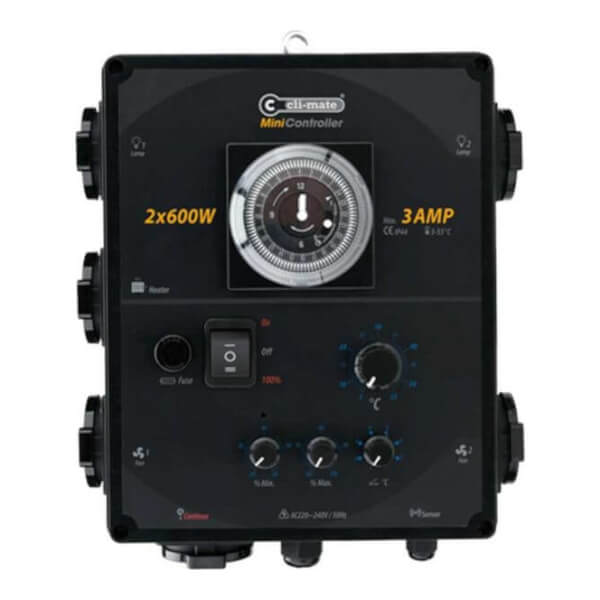

The Cli-Mate Mini Controller is an all-in-one controller, simple to program and use to maintain the optimum indoor cultivation environment.

The Mini Controller can control two sets of 600w, or 4 sets of 600w depending on the model, and is fitted with a quality timer, divided in 15 minute intervals. The timer has three positions, ON, OFF and 100%.

To control the extraction and renewal of air, an extractor and intake fan can be connected and configured to work at the desired power and configuring the intake and extractor fans to create negative pressure, avoiding any odour problems.

In cold weather it's possible to connect an electric heater or radiator which will be activated turned on when the temperature of the crop falls below the set parameters, raising and maintaining the temperature at its optimum point.

The Mini Grower has a degree-to-degree hysteresis regulator on a scale of 1 to 7ºC.

With Mini Controller it's very easy to control our indoor grow, always keeping it fully optimised to obtain the best results from our plants.

Cli-Mate Mini Controller info:

• Temperature range: 5-55º
• Power supply: Single phase at 220/240v - 50Hz
• Switching differential: from 1º to 7º
• Heater input: 3500w per input
• Maximum lamp input: 600w per input (2 or 4 inputs depending on model)
• IP44 Protection
• Dimensions: 250x220x120mm
