Twin Controller

Information

The Twin Controller from Cli-Mate is an air and temperature controller with the ability to control an extractor and an intake fan, as well as controlling negative pressure to prevent odour leakage from the grow space.

The Twin Controller is an ideal accessory for indoor gardeners who want full control over the temperature of the grow using extractors to maintain the ideal indoor climate.

How to use Twin Controller from Cli-Mate

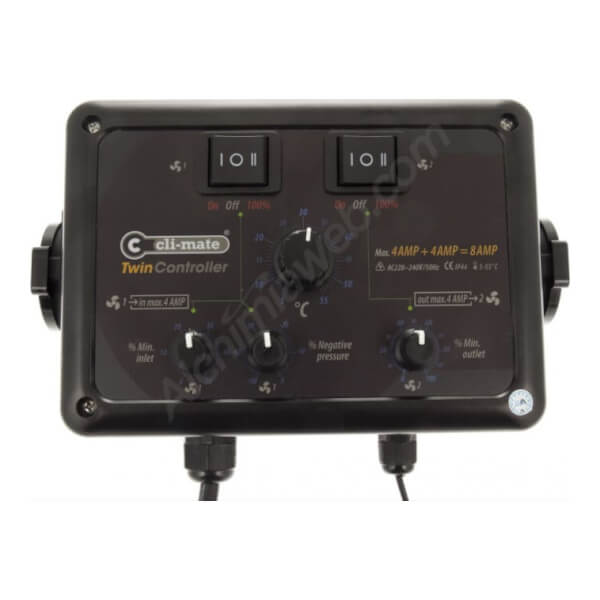

The controller is very simple to use. On the side of the 190 x 135 x 85mm box, with IP44 protection, we'll find two electrical sockets to connect the extractor and the intake fans. Both can be controlled separately via the buttons on the controller.

On the top of the controller we find the power switch with ON, OFF, and 100% operation settings. In order for the controller to detect and operate according to the gardener's pre-sets, it must be in ON mode. To turn it off we will choose OFF, while at 100% both fans will work at full speed.

To start controlling the temperature, we first select the desired temperature within the growing space. Then with the wheel on the left of the unit we adjust the air intake and the negative pressure. All that remains is to adjust the power of the extractor, with the wheel in the lower right, and must be equal to, or greater than the power of the intake fan.

The temperature sensor should be situated just above the tops of the plants to properly measure their direct environment.

The Twin Controller includes a wall bracket on its reverse.

Cli-Mate Twin Controller info:

• Temperature range: 5 to 55ºC
• Power source: 220/230V - 50Hz
• Switching differential: 1ºC
• 2 versions 8A (4A per socket) and 24A (12A per socket)
• Dimensions: 22 x 14 x 11 cm
• Splash protection: IP44

Documents download

• 612166-manual-twin-controller.pdf
