The Twin Controller Humi from Cli-Mate is an air, temperature and humidity controller. This unit will allow us to easily maintain our grow space at a climate 100% optimised for our plants and to obtain the best possible results.
It is a very similar unit to the Twin Controller, but with the additional feature of allowing us to control the humidity in our crop via the extractor and the intake fan.
Measuring 190 x 35 x 85mm, the unit boasts IP44 splash protection and has all the controls we'll need to configure it according to our needs. On the sides of the controller we will find the plugs for the intake fan, the extractor, and on the bottom part the inputs for the power source and the dual probe for temperature and humidity.

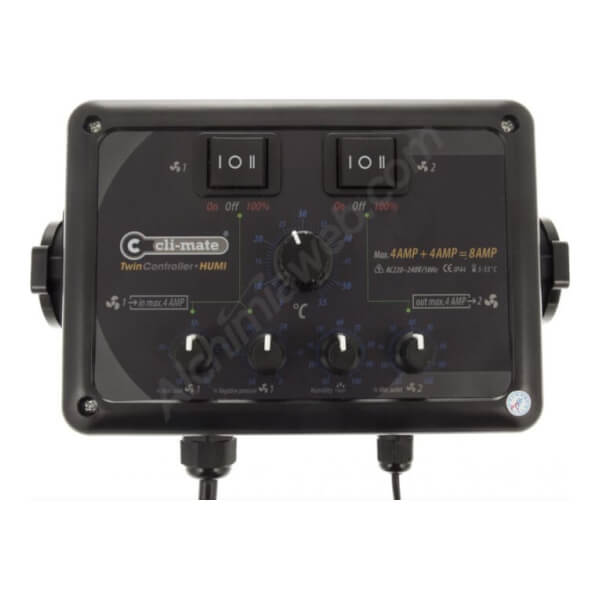

On the front of the controller, from the top, we find the 2 main buttons, each with 3 positions: ON, OFF, and 100%. In order for the controller to work according to the chosen parameters, we set it to ON mode. In Off it will remain off and at 100% the extractor and intake fans will operate at full power.
On the central part of the controller we find the temperature control wheel used to select the desired temperature.
On the lower part of the Twin Controller, from left to right, we will find the adjustment wheels for the intake fan, negative pressure, humidity control and the extractor.
How to use the Cli-Mate Twin Controller
First switch both buttons to ON. Then we set the desired temperature in the grow space. Then we can adjust the power of the intake fan to set the negative pressure.
The third button allows us to set the maximum desired humidity, and finally the last button is the extractor power control.
We can easily adjust the settings depending on the external environmental conditions, allowing us to adapt the management of the grow space according to the season.
The Twin Controller Humi is fitted with a wall bracket on the reverse.
Cli-Mate Twin Controller Humi info:
- Temperature range 5 to 55ºC
- Power source: 220/230V - 50Hz
- Switching differential: 1ºC
- Up to 4A per socket
- Dimensions: 190 x 135 x 85 mm
- IP44 Protection
