Lumatek Zeus 600w Pro LED

Information

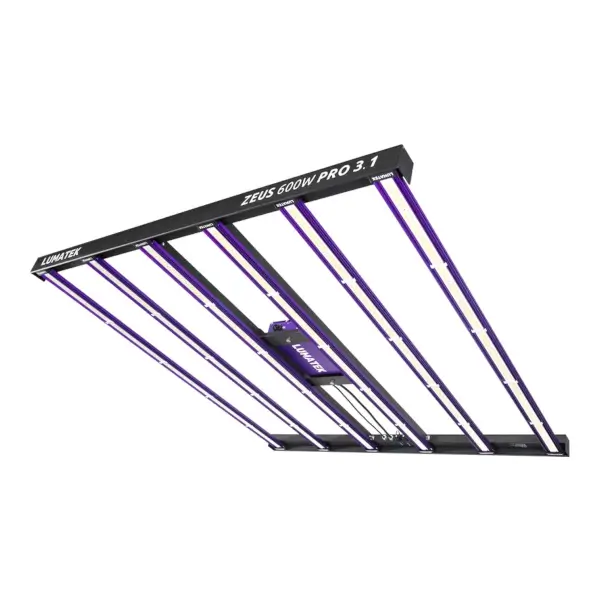

Lumatek has brought us closer to the perfect LED lamp with its new Zeus 600W Pro 3.1. This multi-light linear bar fixture delivers exceptionally high PPF levels (1990 µmol/s) and remarkable efficiency (up to 3.1 µmol/J). It won the Best Grow Product award at Spannabis 2024. It is 10% more efficient than the previous 2.9 model.

Lumatek Zeus 600W Pro 3.1: High Intensity and Optimal Efficiency

After impressing the world with the innovative Zeus 600W Pro LED in 2020 and its 2.9 version in 2022, Lumatek is back with a new and improved model: the Zeus 600W Pro 3.1. This model offers full-spectrum lighting with increased light intensity, higher efficiency, and enhanced light penetration, ensuring uniform light distribution over your plant canopy. The new Zeus covers a growing area of up to 1.5m x 1.5m for both growth and flowering stages, thanks to advancements in diode technology.

Lumatek Zeus 600W Pro 3.1 is dimmable and compatible with Lumatek drivers, known for their high efficiency and quality. It uses top-of-the-line Samsung LM301H EVO and Osram 4.24 LEDs, which provide a full-spectrum light ideal for both vegetative and flowering stages.

A new addition to this model is the Clear Glue protective cover applied to the LED bars, which offers 99% light transmittance without energy loss, extends diode service life, increases corrosion resistance, and boasts an IP65 waterproof rating. For simple maintenance, you only need to wipe the bars with a damp cloth.

The Zeus 600W Pro 3.1 LED can be dimmed without losing efficiency, making it suitable for growing different plants or adapting to various stages of cultivation. Its high-efficiency, low-power configuration with six LED bars reduces the temperature of the LEDs, increasing output and ensuring better light maintenance.

External Control with Lumatek Digital Controller

For added functionality, the Zeus 600W Pro 3.1 can be controlled externally with the Lumatek digital lighting controller (Digital Panel Plus 2.0), which includes features such as light timing, automatic dimming in 1% increments, temperature safety control, and dawn/dusk mode. You can connect up to 100 fixtures per controller.

Lumatek LED Zeus 600W PRO 3.1 info:

• Dimensions: 1182mm x 1091mm x 52 mm
• Weight: 13.5kg
• Efficiency: 3.1 µmol/J
• PPF: 1990 µmol/s
• 120° light distribution
• Samsung LM301H EVO and OSRAM 4.24 LEDs
• Coverage area: 1.5m x 1.5m
• Power factor: >0.95
• Dimmable: 25-50-75-100% with 0-10 V dimmer (included)
• Input voltage: 220-240 V AC, 50-60 Hz
• Input power: 640 W (2.9 A at 230 V AC)
• Externally controllable with Lumatek or any 0-10 V Universal Controller
• Device connection via Daisy Chain cable
• Service life: L90 > 60000 hours
• IP65 protection (humidity)
• Certifications: CE, EMC, LVD

Documents download

• WEB_SPECSHEET-ZEUS-600W-PRO-3.1.pdf
